Installing Longhorn in k3s kubernetes for storage management

May 21, 2023
I have multiple disks loaded into my different nodes and they are all not the same, Hence I needed a reliable disk volume manager for my k3s kubernetes cluster.  After few options like using NFS I decided to give longhorn a try.
Installing longhorn was pretty simple.

Add in the longhorn helm repo.
❯ helm repo add longhorn https://charts.longhorn.io
"longhorn" has been added to your repositories
Gave it a quick update
❯ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
...Successfully got an update from the "qjoly" chart repository
...Successfully got an update from the "wekan" chart repository
...Successfully got an update from the "yugabytedb" chart repository
...Successfully got an update from the "traefik" chart repository
...Successfully got an update from the "k8s-at-home" chart repository
...Successfully got an update from the "truecharts" chart repository
Helm install command.
❯ helm install longhorn longhorn/longhorn --namespace longhorn-system --create-namespace --version 1.4.2

NAME: longhorn
LAST DEPLOYED: Sun May 21 17:56:10 2023
NAMESPACE: longhorn-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Longhorn is now installed on the cluster!

Please wait a few minutes for other Longhorn components such as CSI deployments, Engine Images, and Instance Managers to be initialized.

Visit our documentation at https://longhorn.io/docs/
Give it a minute or two and check if pods have been created.
❯ kubectl -n longhorn-system get pod
NAME                                                  READY   STATUS    RESTARTS   AGE
longhorn-conversion-webhook-5c75577484-vcm4g          1/1     Running   0          5m48s
longhorn-conversion-webhook-5c75577484-kdt44          1/1     Running   0          5m48s
longhorn-ui-5d8569577-2qnlz                           1/1     Running   0          5m48s
  4 apiVersion: networking.k8s.io/v1
longhorn-ui-5d8569577-t6zzm                           1/1     Running   0          5m48s
longhorn-recovery-backend-c4c77d7d9-z4zz5             1/1     Running   0          5m48s
longhorn-recovery-backend-c4c77d7d9-4tk8x             1/1     Running   0          5m48s
longhorn-admission-webhook-65669f9957-d5dlk           1/1     Running   0          5m48s
longhorn-manager-4ch7l                                1/1     Running   0          5m48s
longhorn-manager-2wcnq                                1/1     Running   0          5m48s
longhorn-driver-deployer-9d85f7675-q2jmm              1/1     Running   0          5m48s
longhorn-admission-webhook-65669f9957-j2f7d           1/1     Running   0          5m48s
csi-snapshotter-588bd6f85d-htwfs                      1/1     Running   0          4m56s
csi-resizer-8558456d59-sxs9z                          1/1     Running   0          4m57s
csi-attacher-7b5d5ff865-pmkwn                         1/1     Running   0          4m57s
csi-attacher-7b5d5ff865-kwhxj                         1/1     Running   0          4m57s
longhorn-csi-plugin-v9c6v                             3/3     Running   0          4m56s
longhorn-csi-plugin-cpqzw                             3/3     Running   0          4m56s
csi-resizer-8558456d59-668r2                          1/1     Running   0          4m57s
csi-resizer-8558456d59-qtkwc                          1/1     Running   0          4m57s
csi-provisioner-68d785644d-59rbj                      1/1     Running   0          4m57s
csi-attacher-7b5d5ff865-vsnv6                         1/1     Running   0          4m57s
csi-provisioner-68d785644d-5xzxv                      1/1     Running   0          4m57s
csi-snapshotter-588bd6f85d-kflqr                      1/1     Running   0          4m56s
csi-provisioner-68d785644d-pq424                      1/1     Running   0          4m57s
csi-snapshotter-588bd6f85d-nnvjz                      1/1     Running   0          4m56s
engine-image-ei-f9e7c473-cqjpg                        1/1     Running   0          5m13s
engine-image-ei-f9e7c473-jfmqb                        1/1     Running   0          5m13s
instance-manager-e-fee03a6dad8001a3ed9e950bfe5a1ace   1/1     Running   0          5m13s
instance-manager-r-fee03a6dad8001a3ed9e950bfe5a1ace   1/1     Running   0          5m13s
instance-manager-e-a7ab7c8a44898b0fc4d4ba6fc8937839   1/1     Running   0          5m11s
instance-manager-r-a7ab7c8a44898b0fc4d4ba6fc8937839   1/1     Running   0          5m11s
One immediate problem, I noticed was that longhorn-frontend was installed in ClusterIP mode, which meant it could not be accessed from ourside world. I needed it to be accessed from other devices in my VPN, So
I downloaded the helm values into my computer to be able to change it.
❯ helm show values longhorn/longhorn >> values.yaml
Checking on the values file , I changed the type of UI to NodePort.
 service:
 14   ui:
 13     type: NodePort
 12     nodePort: 32323
Then reapply these values using helm.
❯ helm upgrade -n longhorn-system longhorn longhorn/longhorn -f values.yaml
Release "longhorn" has been upgraded. Happy Helming!
NAME: longhorn
LAST DEPLOYED: Sun May 21 18:18:11 2023
NAMESPACE: longhorn-system
STATUS: deployed
REVISION: 2
TEST SUITE: None
NOTES:
Longhorn is now installed on the cluster!

Please wait a few minutes for other Longhorn components such as CSI deployments, Engine Images, and Instance Managers to be initialized.

Visit our documentation at https://longhorn.io/docs/
Check for the TYPE
❯ kubectl -n longhorn-system get svc
NAME                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
longhorn-replica-manager      ClusterIP   None            <none>        <none>         37m
longhorn-engine-manager       ClusterIP   None            <none>        <none>         37m
longhorn-backend              ClusterIP   10.43.2.160     <none>        9500/TCP       37m
longhorn-recovery-backend     ClusterIP   10.43.91.212    <none>        9600/TCP       37m
longhorn-admission-webhook    ClusterIP   10.43.218.102   <none>        9443/TCP       37m
longhorn-conversion-webhook   ClusterIP   10.43.185.183   <none>        9443/TCP       37m
csi-attacher                  ClusterIP   10.43.72.249    <none>        12345/TCP      37m
csi-provisioner               ClusterIP   10.43.228.126   <none>        12345/TCP      37m
csi-resizer                   ClusterIP   10.43.97.55     <none>        12345/TCP      37m
csi-snapshotter               ClusterIP   10.43.86.159    <none>        12345/TCP      37m
longhorn-frontend             NodePort    10.43.196.87    <none>        80:32323/TCP   37m
Cool, Notice the longhorn front end as TYPE NodePort.

Now i needed to add in a ingressRoute for it to be accessible from my VPN.
1   apiVersion: traefik.containo.us/v1alpha1
  1 kind: IngressRoute
  2 metadata:
  3   name: longhorn-ingress-route
  4 spec:
  5   entryPoints:
  6   - web
  7   - websecure
  8   routes:
  9   - kind: Rule
 10     match: Host("longhorn.100.111.59.19.sslip.io")
 11     services:
 12     - name: longhorn-frontend
 13       port: 80
~
~
~
~
Apply the newly created ingress Route
❯ kubectl -n longhorn-system apply -f longhorn-ingress-route.yaml

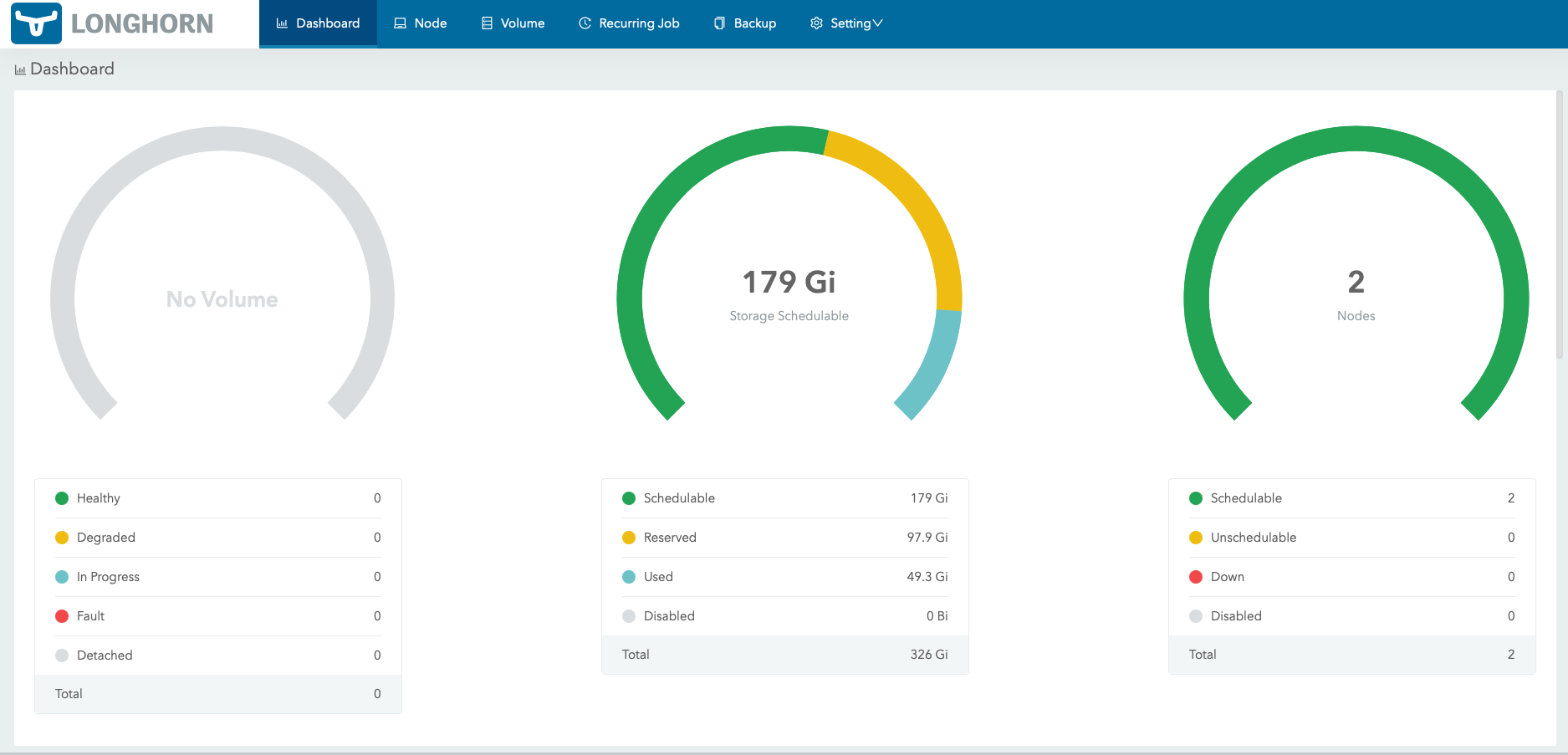

Test it out in a browser.

Longhorn frontend UI

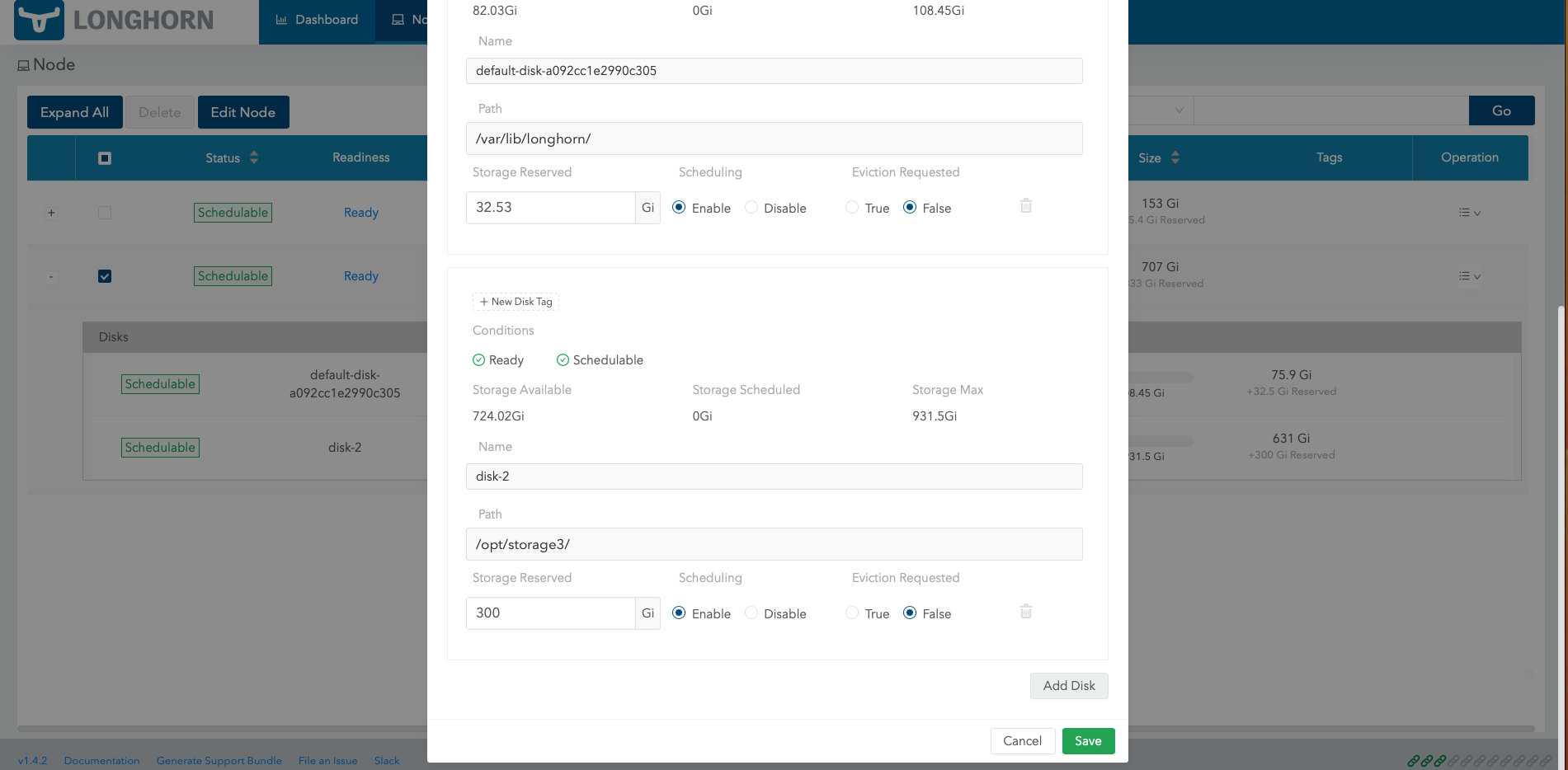

I still have a problem though. My added external volumes are not shown yet . Which seemed to be pretty easy to just edit the node and add the mounted path manually.
Adding in mounted files


If you have any questions or would want to solve any issues with helm, k3s or longhorn , Feel free to reach out to me .
