Accessing traefik dashboard in your k3s kubernetes cluster without port forwarding.

March 22, 2023 kapilnakhwa

A lot of people use nginx as ingress router in their kubernetes cluster setup, However,I had been using nginx since 2011 and since, ingress-nginx could not provide zero downtime connections as backend pod configurations are changed I decided to give traefik a try. Also ingress-nginx has few security issues.

A lot of people already know how to access traefik dashboard via port forwarding as follows.

kubectl -n kube-system port-forward deploy/traefik 9000:9000

However, this might be inconvinient to always start up a port forwarding from your access client.

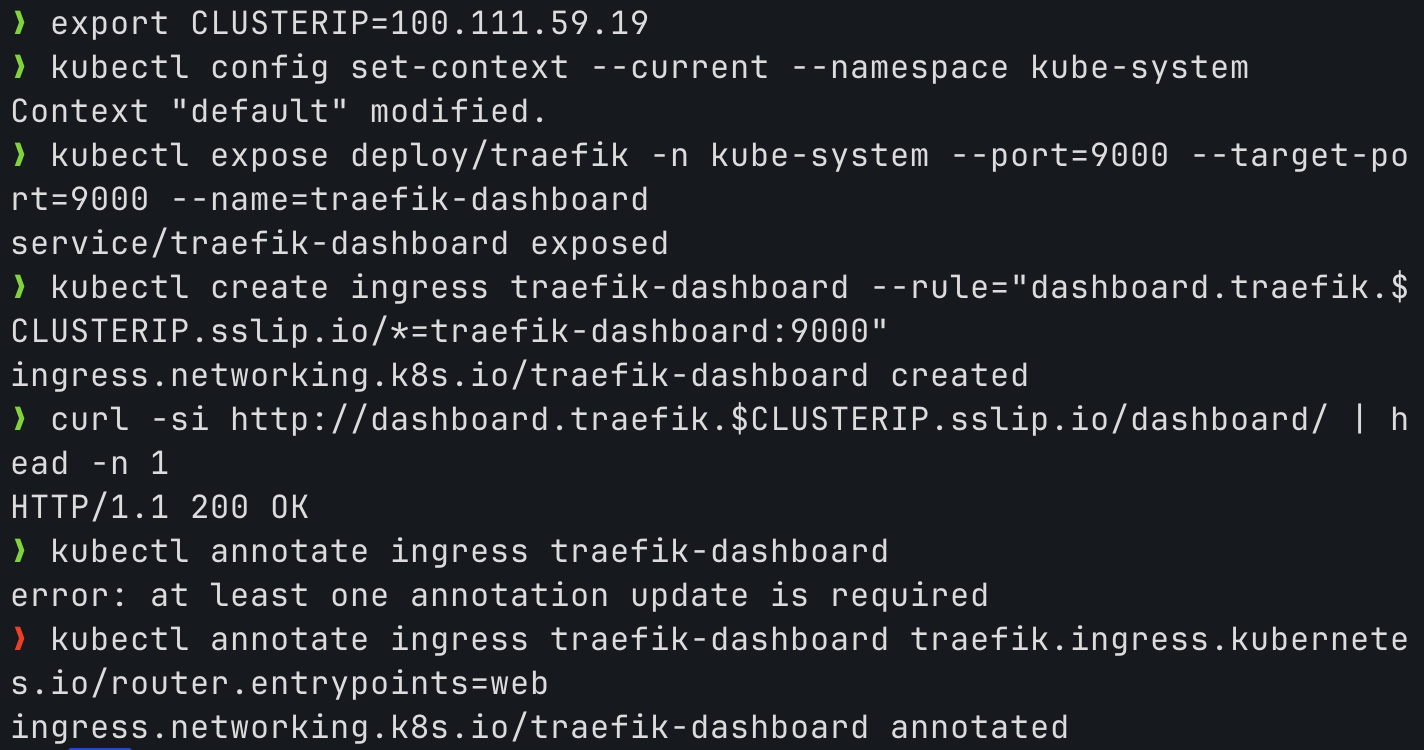

Export your CLUSTERIP variable so that we can use it along with sslip.io service. It is a service that, when queried with a hostname with an embedded IP address, returns that IP address.

export CLUSTERIP=100.111.59.19

You can find your CLUSTERIP in your kubeconfig ,

cat ~/.kube/config | grep server

Expose your traefik port :

kubectl expose deploy/traefik -n kube-system --port=9000 --target-port=9000 --name=traefik-dashboard

create an ingress

kubectl create ingress traefik-dashboard --rule="dashboard.traefik.$CLUSTERIP.sslip.io/*=traefik-dashboard:9000"

Check for sucess

curl -si http://dashboard.traefik.$CLUSTERIP.sslip.io/dashboard/ | head -n 1

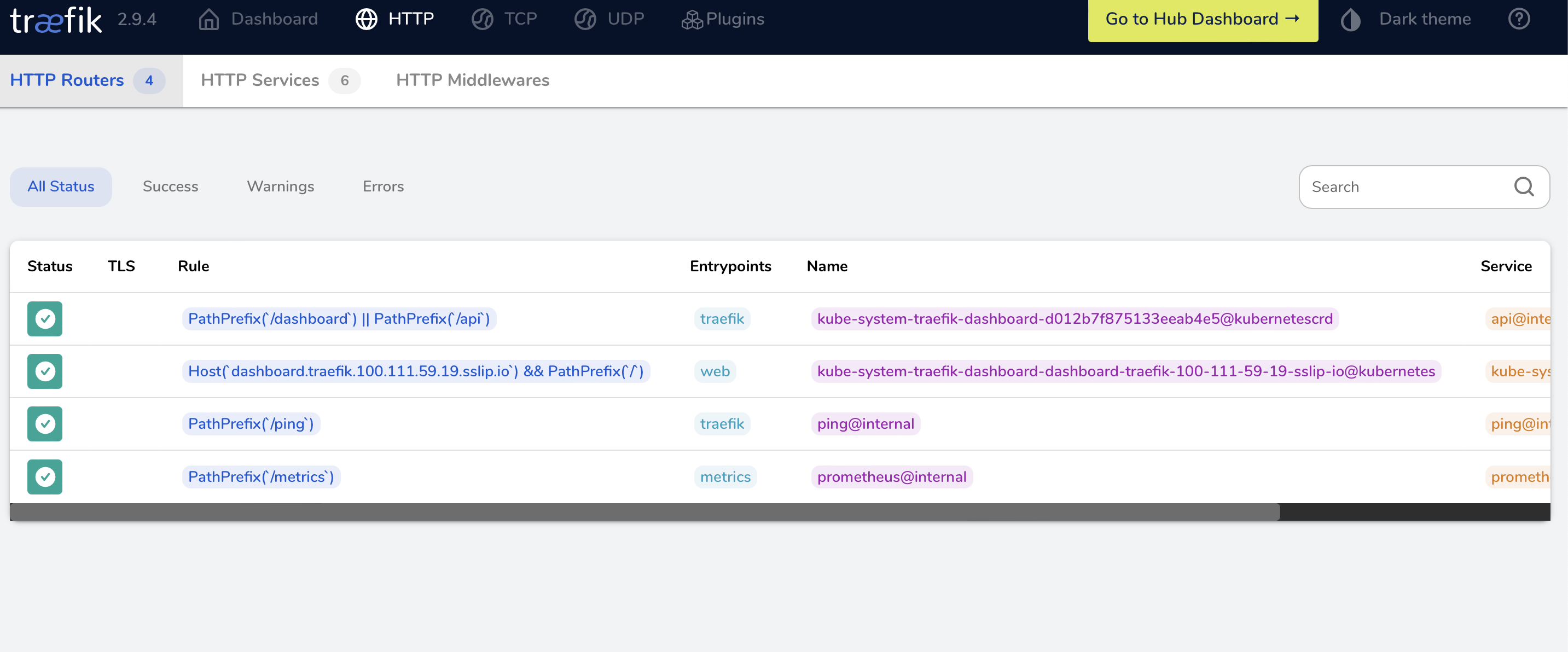

Check in browser by clicking http://dashboard.traefik.$CLUSTERIP.sslip.io/dashboard/
replace $CLUSTERIP with your ip.

While at it for better management and security , Let's annotate our ingress.

kubectl annotate ingress traefik-dashboard traefik.ingress.kubernetes.io/router.entrypoints=web
